Mobile Unit: Stars

Cameras & Lenses

  • 8 Sony HDC-4300 SMPTE Multiformat Camera
  • 4 Sony HDC-1500R SMPTE Multiformat Camera
  • 6 Sony Studio Viewfinders
  • 2 Fujinon 99x/101x Lenses
  • 3 Fujinon 66x/86x Lenses
  • 2 Fujinon 22x Standard Lenses
  • 1 Fujinion 13x Wide Angle Lens

Production Equipment

  • 1 Grass Valley Kayenne 4 M/E Panel
  • - K-Frame 6 M/E 3G-HD-SD Switcher
  • - 96 Inputs, 6 Keyers per ME
  • - 48 Outputs, Still Store Animation, Double Take
  • - 6 Transform Engines, 2 ChromaKeys, Flexikey
  • -KlipCache/Kurl/Advanced Effects
  • -Clip Player and P-Bus
  • 1 Grass Valley K2 8ch Clip Player
  • 1 Imagine Platinum 28FR Video and Audio Router
  • 2 32x6 SX-Pro Multiviewer
  • 4 SX-Hybrid Centrio 32x4 3G/HD/SD Multiviewer
  • 10 Opengear Quad Multiviewers
  • 5 Genelec 8350
  • 1 TSL TM1-MK3 Tally System
  • 2 Evertz MSG 5601 Test Generator w/ ACO
  • 1 Tektronix WVR-8300 w/ Eye,Aud,Data Analyzer
  • 4 WVR-5200 WFM/Vector Scope
  • 20 Miranda XVP-3901 FS/CC/Converter/Audio
  • 1 Miranda RCP-200 Controller
  • 2 X100 Imagine Dual Frame Sync/Converters
  • 2 AJA FS-4 Frame Sync/ Converters
  • 24 Imagine ST Fiber/SDI 24-TX/24-RX Transceivers
  • 36 Imagine 3G/HD/SD DA's
  • 8 Evertz 7812 3G/HD to Composite Converters

Graphics

  • Chyron Mosaic Dual Character Generator or
  • Ross Xpressions Dual w/ Datalinq Server

Recording & Playback

  • 3 EVS XT-VIA 8ch 3G/HD Record/Playout
  • 1 EVS X-File[3]
  • 1 IP-Director
  • 2 AJA KiPro Ultra Plus 8Ch Recorders
  • (Wired for 16)
  • 2 BMD HyperDeck Studio Pro Disk Recorder
  • 1 Lance TDC-100 Controller
  • 2 Digicart EX Music Playback
  • 1 Trigger PC Music Playback w/ Streamdeck

Audio

  • 1 Calrec Omega Bluefin Digital Audio Console
  • - 96 Mic/Line Inputs, 48 Outputs
  • - 128x128 AES In/Out
  • 2 Calrec Madi 64x64
  • 4 Ferrofish Madi/Dante Converters
  • 2 Miranda AES/Madi 64Ch Converters
  • 1 DK Digital Audio Scope (5.1 Surround Sound)
  • 1 5.1 Generlec 8030 Surround System
  • 14 Wohler Audio Monitors
  • - 128x128 Coax AES Router
  • - 96x96 Audio Line Level Router

Communications

  • 1 RTS ADAM 160-Port Frame Intercom System
  • 1 RVON-16
  • 1 OMNEO-32
  • 1 RTS SAP 1626 - 12 Intercom Channels
  • 4 Telex 2 to 4-Wire Interface
  • 8 IFB Channels (Wet/Dry)
  • 10 RTS TIF-2000 Telephone Interface
  • 1 JK Audio Innkeeper 4 - 4Ch Digital Hybrid
  • 11 RTS KP-32 Master Stations
  • 6 RTS 4016KP
  • 1 DKP-16 Desk Stations
  • 8 RTS BP-325 Beltpacks w/ Headsets
  • 5 DBP Omneo Digital Beltpack w/ Headsets
  • 6 RTS 4040 IFB Beltpacks
  • 4 Studio Tech IFB Dante Beltpack
  • 4 Daltech Announcer Talkback Consoles
  • Fiber Booth Kit Available Upon Request

Outboard Monitors

  • 5 NEC 50" Production Monitors
  • 2 24" Tvlogic QC Production Monitors
  • 2 24" NEC Production Monitors
  • 3 Sony 17" Trimaster Shading Monitors
  • 10 17" Marshall 3G/HD/SD Color Monitors
  • 7 21" NEC Color Monitors
  • 2 28" NEC Color Monitors
  • 12 Marshall 10" Dual Color Monitors w/ UMD
  • 4 24" ASUS Touchscreen Monitors
  • 1 BMD 7" Monitor
  • 1 17" Ikegami QC Monitor

Cables

  • - SMPTE Fiber Camera Cables
  • - Audio & Video Mults
  • - Single Audio and Video Cables
  • - DT-12 Mults
  • - TAC-12 Fiber Mults
  • All cable loaded per job specification

Additional Equipment Available

  • - Fiber to SDI Converters
  • - Media Converters
  • - Studio Buildup Kits
  • - Fiber Booth Kits
  • - Portable Lighting Kits

Power Requirements

  • 1 - 208 Volts, Single-Phase, 200 Amps OR
  • 200 Amp 3-Phase Connection
  • 1 200' Camlock Cable Onboard

Truck Physical Specifications

  • Chasis: 2008 Peterbuilt 340
  • Length: 40' Overall
  • Height: 13'6"
  • Width: 8'5"
  • Working Footprint: 46' x 24'
  • Weight: 44,500lbs (GVW)
  • NY Plate No: 51667-PF
  • * Operates with B-Unit Support Truck
  • (Stripes)

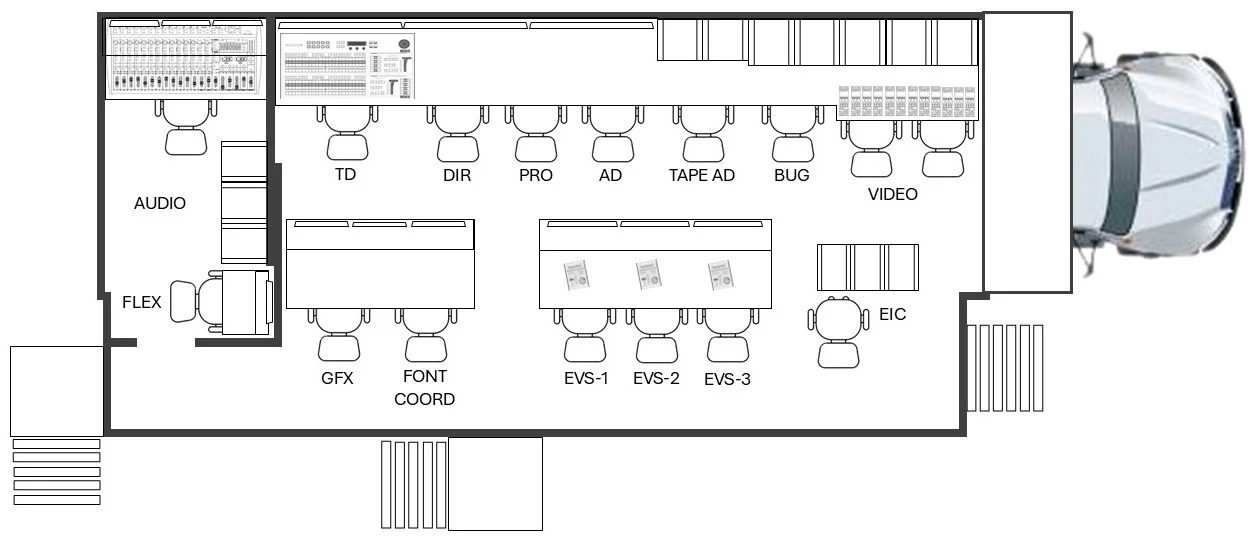

Layout for Stars
