Mobile Unit: Sky

Cameras & Lenses

  • 7 IKEGAMI HDK-97 SMPTE Multiformat Full
  • 3G/HD/SD Cameras
  • 4 IKEGAMI HLM-905WR 9" Color Viewfinders
  • 1 Fujinon XA 66x9.5 BESM Lens
  • 2 Fujinon XA 50x9.5 BESM Lenses
  • 3 Fujinon HA 18x/22x7.6 BERD Standard Lens
  • 1 Fujinion HA 13x4.5 BERM Wide Angle Lens

Production Equipment

  • 1 Blackmagic ATEM Studio 1 M/E Panel surface
  • -2 M/E Frame, 20 Inputs, 12 Outputs, 2 Multiviewers
  • - Full Motion DVE, Stinger Transitions
  • - 4 Upstream Keyers, Downstream Keyers
  • - Large Media Pool w/ Full Motion Clips
  • - 3 AUX Outputs
  • 1 Blackmagic Universal Video 3G Hub
  • - 72x144 HD/SDI Router
  • 2 Blackmagic Teranex Frame Sync/Converters
  • 1 Imagine X-100 Dual Frame Sync/Converters
  • 2 Ensemble Design 7900 HD U/D/C Converters
  • 7 MC-DMON Quad Multiviewers
  • 1 Decimater 16s Multiviewer
  • 2 Ensemble Design 7400 Master Sync Gen.
  • 1 TSL TM Tally System
  • 1 Imagine VTM On-Screen Monitor
  • 1 Leader 5750 Waverform & Vector Scope
  • 1 Tektronix WFM5000 Wavefrom & Vector Scope
  • 1 Lawo V_pro8 Video Frame Sync w/ Madi
  • 1 ST-Fiber AJA 3G/HD 8-TX/10-RX Transceivers

Recording & Playback

  • 2 AJA KiPro Disk Recorders (wired for 6)
  • 2 BDM HyperDeck Studio Pro Disk Recorders

Audio

  • 1 Midas M32R Digital Audio Console w/ Dante
  • - 16 Mic/Line Inputs / 14 Outputs
  • 1 Ferrofish Madi/Dante Converter
  • 1 Glen Sound 16Ch AIO/Dante Converter
  • 6 Wohler Audio Monitors
  • 1 Harris Platinum 32x32 Analog Audio Router
  • 1 Audio PC Clip Player w/ Streamdeck

Communications

  • 2 RTS Cronus 32-Port Intercom System
  • 2 RVON-8
  • 2 RTS KP-32 Master Stations
  • 4 RTS KP-12 Master Stations
  • 1 RTS SAP 612 - (6) 2-Wire Intercom Channels
  • 3 Telex 2 to 4-Wire Interface
  • 6 RTS TIF-2000 Telephone Interface
  • 1 4Ch Inkeeper Telephone Interface
  • 8 IFB Channels (Wet/Dry)
  • 5 RTS BP-325 Beltpacks w/ Headsets
  • 5 RTS 4040 IFB Beltpacks

Transmissions

  • Sat-Lite 1.8 Meter Antenna LP
  • - Ku-Band Multi-Path
  • - 4-Port Feed Assembly - No Polarity Restrictions
  • 2 MCL MT3200 400W HPA's
  • 1 MCL VPC Controller
  • 2 Miteq UC-9696 Upconverters
  • 2 Adtec EN-81 Encoders w/ Modulators
  • 8 Adtec EN-91 Encoders (wired for 10)
  • 2 Adtech RD-60 Receivers
  • 2 Ericsson 8500 Receivers
  • 2 Upcom 250IF Modulators

Outboard Monitors

  • 1 NEC 46" Production Monitor
  • 5 Blackmagic 17" Monitors
  • 2 Blackmagic SmartView Duo Monitor
  • 3 Marshall 17" Monitors
  • 1 TV Logic 17" Monitor
  • 1 DSS Receiver
  • 1 Off-Air Receiver

Cables

  • - SMPTE Fiber Camera Cables
  • - Audio & Video Mults
  • - Single Audio and Video Cables
  • - DT-12 Mults
  • - TAC-12 Fiber Mults
  • All cable loaded per job specification

Additional Equipment Available

  • - Fiber to HDSDI Converters
  • - Media Converters
  • - Studio Buildup Kits
  • - Fiber Booth Kits
  • - Portable Lighting Kits

Generator

  • - Kohler 20KW Standby Diesel Generator
  • - 100 Gallon Fuel Capacity

Power Requirements

  • - 208 Volts, Single-Phase, 100 Amps
  • - 150' Camlock Cable Onboard

Truck Physical Specifications

  • Chasis: 2010 Freightliner M2
  • Length: 26' Overall
  • Height: 12'10"
  • Width: 8'5"
  • Working Footprint: 36' x 16.5'
  • Weight: 26,000lbs (GVW)
  • NY Plate No: 70551ME

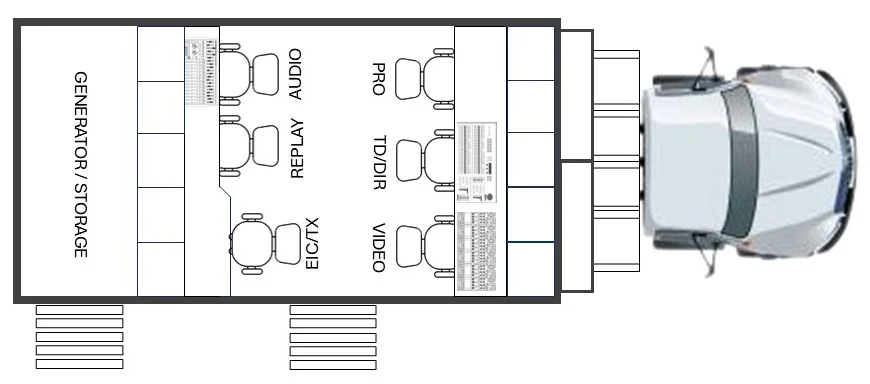

Layout for Sky
