Mobile Unit: Liberty

Cameras & Lenses

  • 8 Sony HDC-1500R SMPTE Multiformat Full
  • HD Cameras
  • 5 Sony HDVF-C750W 6" Color HD Viewfinders
  • 1 Fujinon 86x9.5 BESM Lens
  • 2 Fujinon 66x9.5 BESM Lenses
  • 4 Fujinon 22x7.3 BERM Standard Lenses
  • 1 Fujinion 13x4.5 BERM Wide Angle Lens

Production Equipment

  • 1 Blackmagic ATEM Studio 1 M/E Panel surface
  • -2 M/E Frame, 20 Inputs, 12 Outputs, 2 Multiviewers
  • - Full Motion DVE, Stinger Transitions
  • - 4 Upstream Keyers, Downstream Keyers
  • - Large Media Pool w/ Full Motion Clips
  • - 3 AUX Outputs
  • 1 Blackmagic Smart Video Hub 72x72 Router
  • 1 ST-Fiber AJA 3G/HD 10-TX/10-RX Transceivers
  • 1 Tektronix WFM Multiformat On-Scren Monitor
  • - Eyepattern, Audio & Data-Analyzer
  • 2 Tektronix WFM-5000 Waveform/Vector
  • 1 DMON16S, DMON9S & 2 Quads Multiviewers
  • 1 TSL TM1-Tally System
  • 3 X100 Imagine Dual Frame Sync Generators
  • 1 LAWO V-Pro 8 Video Frame Syncs CC w/ Madi

Recording & Playback

  • 2 Atomos Shogun Studio 2 8ch Recorder
  • 2 Blackmagic Hyperdeck Studio Pro Disc Recorders
  • 1 Evertz 8Ch Dreamcatcher

Audio

  • 1 Behringer 32 Digital Audio Console
  • - 32 Mic/Line Inputs, 16 Outputs
  • - 6 Additional AUX/I/O
  • - Dante Interface
  • 1 Glend Sound 16Ch AIO/Dante Converter
  • 1 Ferrofish Madi/Dante Converter
  • 7 Wohler Audio Monitors
  • 1 Harris 32X32 Analog Audio Router
  • 1 Audio PC Clip Player w/ Streamdeck

Communications

  • 2 RTS Cronus 64-Port Intercom System
  • 2 RVON-8
  • 5 RTS KP-32 User Stations
  • 2 RTS KP-12 User Stations
  • 1 RTS SAP 612 - (6) 2-Wire Intercom Channels
  • 3 Telex 2 to 4-Wire Interface
  • 6 RTS TIF-2000 Telephone Interface
  • 1 Innkeeper 4Ch Telephone Interface
  • 8 IFB Channels (Wet/Dry)
  • 5 RTS BP-325 Beltpacks w/ Headsets
  • 5 RTS 4040 IFB Beltpacks
  • 4 Daltech Announcer Talkback Consoles
  • * Booth kit can be fiber or AIO. Please
  • confirm in advance.

Transmissions

  • Andrews 2.4 Meter Antenna LP
  • - KU-Band Multi-Path
  • - 4-Port Feed Assembly. No Polarity
  • Restrictions
  • 2 ETM 400W TWT's Phase Combined Systems
  • 2 LNR Upconverters
  • 2 Mediakind Voyager II 3G/HD/SD Encoders
  • w/ Modulators
  • 10 Selenio MPEG-4 Encoders
  • 4 Ericcson 8500 Receivers
  • 2 Adtec DTA 3050 10ch MUX Unit
  • 2 Newtech M6100 Modulators w/ Carrier ID

Outboard Monitors

  • 1 NEC 42" Monitor
  • 2 Blackmagic SmartView Duo Monitors
  • 5 Marshall 17" Color Monitors
  • 1 Sony Trimaster 17" Color Monitor
  • 1 Ikegami QC Monitor
  • 1 DSS Receiver
  • 1 Off-Air Receiver

Cables

  • - SMPTE Fiber Camera Cables
  • - Audio & Video Mults
  • - Single Audio and Video Cables
  • - DT-12 Mults
  • - TAC-12 Fiber Mults
  • * All cable loaded per job specification

Additional Equipment Available

  • - Fiber to HDSDI Converters
  • - Media Converters
  • - Studio Buildup Kits
  • - Fiber Booth Kits
  • - Portable Lighting Kits

Generator

  • - Kohler 20KW Standby Diesel Generator
  • - 75 Gallon Fuel Capacity

Power Requirements

  • - 208 Volts, Single-Phase, 100 Amps
  • - 150' Camlock Cable Onboard

Truck Physical Specifications

  • Chasis: 2000 Chevrolet T6500
  • Length: 31' Overall
  • Height: 12'10"
  • Width: 8'6"
  • Working Footprint: 42' x 22'
  • Weight: 25,999lbs (GVW)
  • NY Plate No: 78836-PC

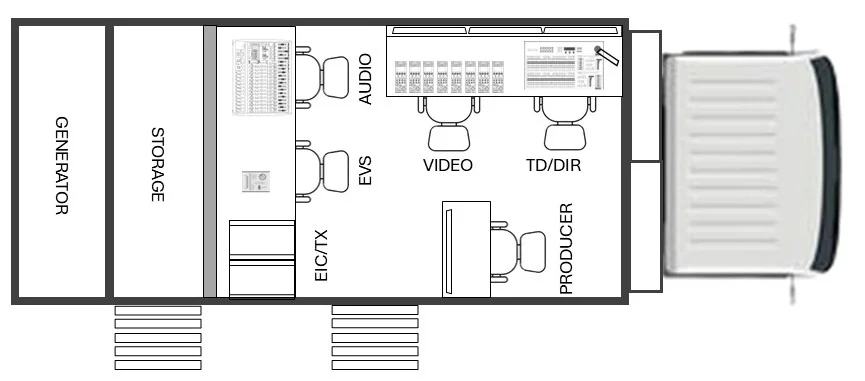

Layout for Liberty
