Mobile Unit: Glory

Cameras & Lenses

  • 8 Sony HDC-4300 SMPTE Multiformat Cameras
  • 4 Sony HDC-1500R SMPTE Multiformat Cameras
  • 6 Sony Studio Viewfinders
  • 2 Fujinon 99x/101x Lenses
  • 3 Fujinon 66x/86x Lenses
  • 2 Fujinon 22x Standard Lenses
  • 1 Fujinon 13x Wide Angle Lens

Production Equipment

  • 1 Grass Valley Kayenne 4 M/E Panel
  • - K-Frame 6 M/E 3G-HD-SD Switcher
  • - 96 Inputs, 6 Keyers per ME
  • - 48 Outputs, Still Store Animation, Double Take
  • - 6 Transform Engines, 2 ChromaKeys, Flexikey
  • - KlipCache/Kurl/Advanced Effects
  • - Clip Player and P-Bus
  • 1 Grass Valley K2 8ch Clip Player
  • 1 Imagine Platinum 28FR Video and Audio Router
  • 2 32x6 SX-Pro Multiviewer
  • 4 SX-Hybrid Centrio 32x4 3G/HD/SD Multiviewer
  • 10 Opengear Quad Multiviewers

Audio

  • 1 Calrec Omega Bluefin Digital Audio Console
  • - 96 Mic/Line Inputs, 48 Outputs
  • - 128x128 AES In/Out
  • 2 Calrec Madi 64x64
  • 4 Ferrofish Madi/Dante Converters

Truck Physical Specifications

  • Chassis: 2015 Volvo 780
  • Length: 42' Overall
  • Height: 13'6"
  • Width: 8'6"
  • Working Footprint: 48' x 24'
  • Weight: 46,000lbs (GVW)

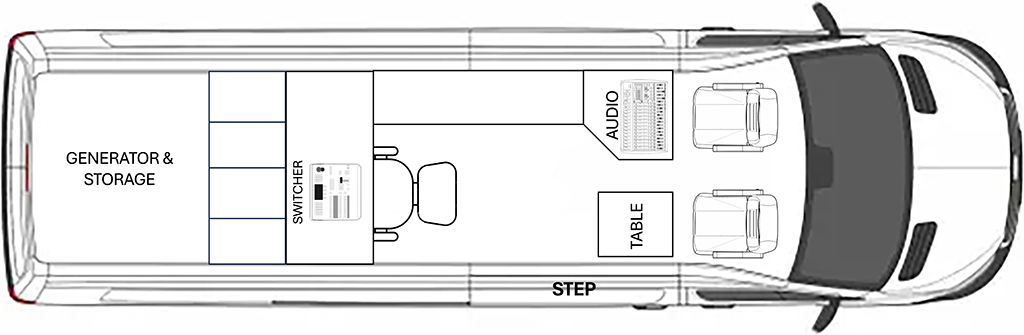

Layout for Glory
