Mobile Unit: Constitution

Production

• 2 Blackmagic Teranex 2D Processors
• 1 X100 Imagine Dual Frame Sync Proc/Converter
• 1 Leitch VTM 4100PKG
• 1 Apantec LE Multiviewer
• 1 BMD 40x40 3G/HD/SD Video Router
• 2 Blackmagic SmartView Duo Monitors
• 4 Marshall 17" Monitors
• 1 EVERTZ 5600 SPG
• 1 Ward Beck AMS-16 Dolby 5.1 Monitor
• 2 Wohler Monitor Speakers
• 1 ST-Fiber AJA 8-RX/4-TX Fider/SDI Transceivers
• 1 Harris Platinum Audio 32x32 Router
• 4 AJA Opengear 3G/HD VDA DA's
• 1 Evertz 5800 Audio DA's

Monitoring

• 1 DSS Receiver
• 1 Off-Air Receiver

Communications

• 1 612 SAP Asignment Station
• 2 RTS PS31 Intercom
• 3 RTS MCE 325 Stations
• 1 Innkeeper 4Ch Phone Interface
• 2 Studio Tech IFB Plus 2A
• 4 Studio Tech 33A Boxes
• 5 RTS BP-325 Beltpacks w/ Headsets

Cables

• - Video/Audio Mults
• - 500' TAC-4 w/ (4) Sets of TX/RX Rattlers

Transmissions

• 2.4 Meter AVL C/Ku-Band Antenna
• 2 Xicom XTD 400W C/Ku Band HPA's
• 2 L3 UC6M2 C-Band Upconverters
• 2 L3 UC14M2-D5 Ku-Band Upconverters
• 2 Adtech En81 Encoders w/ Modulators
• 2 Adtech RD-60 Receivers
• 2 ATEME CM 4101 Encoders (wired for 10)
• 2 ATEME DR8400 Decoders
• 2 Upcom UC-250IF2 Modulators w/ DVB-S2 & 8Psk

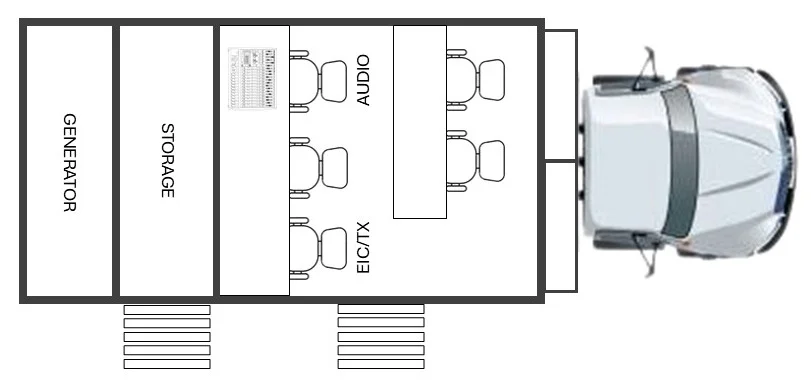

Truck Physical Specifications

• Chasis: 2014 Hino Chassis
• Length: 24' Overall
• Height: 13'
• Width: 8'5"
• Working Footprint: 30' x 17.5'
• Weight: 26,000lbs (GVW)
• NY Plate No: 46761ML

Power Requirements

• - 208 Volts, Single-Phase, 60 Amps
• - 125' Camlock Cable Onboard

Generator

• - Dual Onan 7.5KW Gas Generator
