Mobile Unit: Colonial

Cameras & Lenses

  • 8 Sony HDC-2500 SMPTE Multiformat Full
  • HD Cameras
  • 4 Sony Studio Viewfinders
  • 2 Fujinon 86x/99x Lenses
  • 1 Fujinon 66x Lens
  • 1 Fujinon 55x Lens
  • 3 Fujinon 18x/22x Standard Lens
  • 1 Fujinion 13x Wide Angle Lens

Production Equipment

  • 1 Grass Valley Karrera 2 M/E Panel
  • K-Frame 4 M/E - 3G/HD/SD
  • -80 Inputs, 40 Outputs, Flex Key, Double Take
  • Still Store, Movie & Clip Player
  • 1 Imagine Platinum PM-FR-9 A/V Router
  • -128x112 3G/SDI Router
  • 1 Chyron Mosaic w/ 2Ch HD/SDI
  • 1 Tektronix WFM Multiformat On-Scren Monitor
  • - Eyepattern, Audio & Data-analyzer
  • 2 Tektronix WVR-5200 Multiformat On-Scren scope
  • 1 Harris SX Pro 32x6 Multiviewers
  • 1 DMON-16S Multiviewer
  • 1 TSL TM1-MK2 Tally Interface
  • 6 Imagine X100 Dual Frame Syncs
  • 1 AJA FS-2 Frame Sync
  • 1 Evertz MSC 5601 Master Sync Generator
  • 1 LAWO V-Pro 8 Video Frame Syncs CC w/ Madi
  • 10 ST-Fiber 10-TX/10-RX 3G-HD-SDI Converters
  • 4 POV Transceivers w- RS485 for POV Control

Recording & Playback

  • 2 EVS XT-VIA 8ch
  • 1 EVS XFile[3]
  • 1 K2 8 Ch Replay Clip Player
  • 2 AJA Ki-Pro Ultra Plus 8ch Recorders
  • 2 BMD Hyper Deck
  • 1 Lance TDC-100 Controller

Audio

  • Calrec Omega Audio Console
  • -80 Mic/Line Inputs / 48 Outputs
  • -64 AES Inputs/Outputs
  • 128ch Madi/Dante w -DK Meter
  • 1 Imagine Platinum PM-FR-5 A/V Router
  • -64x80 Coax AES
  • 32x32 Analog Audio Router
  • 6 Wohler Audio Monitors
  • 1 DigiCart EX Music Replay
  • 1 Audio PC Clip Player w/ Streamdeck
  • 1 Tascam SS-R200 USB & Solid State Recorder

Communications

  • 1 RTS-M-Frame Adam Frame 96ch
  • 1 OMNEO 16ch
  • 1 RVON-16
  • 6 KP-32 Master Stations
  • 5 KP-12 Master Stations
  • 4 Telex 2 to 4-Wire Interface
  • 8 Powered PL Channels/SAP 1626
  • 6 RTS TIF-2000 Telephone Interface
  • 1 4Ch Inkeeper Telephone Interface
  • 8 IFB Channels
  • 5 RTS BP-325 Belt packs
  • 5 RTS 4030 IFB Boxes
  • 4 Daltec Announcer Boxes

RF System

  • 2.4M SNG Antenna System on AVL Mounts
  • -Ku-Band Multi-Path
  • -4-Port Feed Assembly
  • -No Polarity Restrictions
  • 2 MCL MT3200 400w HPA's
  • 1 MCL VPC Controller
  • 2 Miteq UC-9696 Upconverters
  • 3 Mediakind AVP-4000 12ch Mpeg4 or 9ch HEVC
  • 2 Adtec RD-71 Receivers
  • 2 Ateme DR5000
  • 2 Adtec DTA3050 Mux
  • 2 Newtec M6100 Modulators w/ Carrier ID

Outboard Monitors

  • 1 Sony Trimaster 17" Monitor
  • 4 17" Marshall MD Monitors
  • 2 TV Logic 23" Production Monitors
  • 3 46 Inch NEC Production Monitors
  • 12 1042 Marshalls 10" w- UMD Monitors
  • 5 BMD Dual 7" Monitors
  • 1 21" NEC Audio Monitors
  • 1 DSS Receiver
  • 1 Off-Air Receiver

Cables

  • - SMPTE Fiber Camera Cables
  • - Audio & Video Mults
  • - Single Audio and Video Cables
  • - DT-12 Mults
  • - TAC-12 Fiber Mults
  • All cable loaded per job specification

Additional Equipment Available

  • - Media Converters
  • - Studio Buildup Kits
  • - Fiber Booth Kits
  • - Portable Lighting Kits

Generator

  • - Kohler 20KW Standby Diesel Generator
  • - 120 Gallon Fuel Capacity

Power Requirements

  • - 208 Volts, Single-Phase, 150 Amps

Truck Physical Specifications

  • Chasis: Mercedes-Benz MB900-280
  • Length: 40' Overall
  • Height: 13'6"
  • Width: 8'6"
  • Working Footprint: 50' x 22'
  • Weight: 54,000lbs (GVW)
  • NY Plate No: 71260-PC

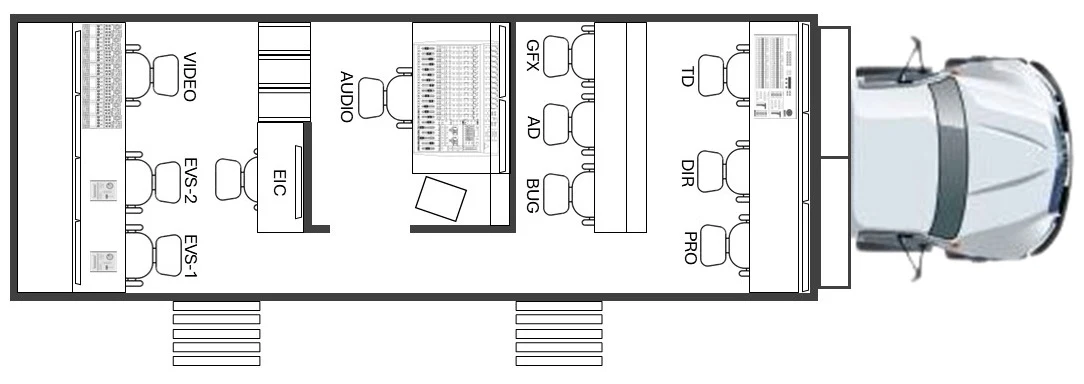

Layout for Colonial
